Advance ENT solution systems

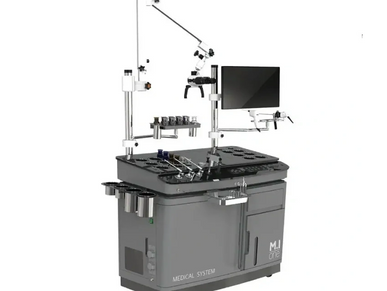

ENT workstation it enables you to monitor patient reactions intuitively by using buttons linked to alert sounds. A built-in fail-system is created in case of malfunctions, so it can still be employed for a stable examination.

Specifications

 POWER SOURCE 220V AC, 50/60HZ

POWER CONSUMPTION 1.5kW

COMPRESSOR MOTOR 0.9-2.0kg/cm²

SUCTION MOTOR

 Max Vacuum 680mm HG

 Max. pressure 7bar

ANTI-FOG DEVICE 330W

 DEVICE CONTROLSWITCH

 Water resistant

OPTION

Monitor with arm set

 Sidecan

 Sub table

Doctor Chair

 Patient Chair

 DIMENSION W1096 x D 737 x H 890

WEIGHT 110kg

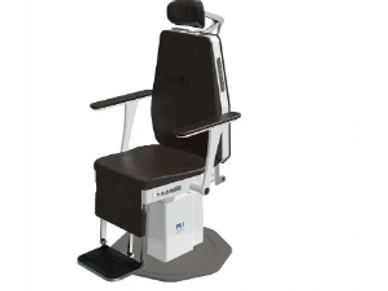

 Unlimited 360-degree rotation, an electronic brake system, a stable center of gravity, and a trustworthy design, and a detailed rotation control algorithm leads to a convenient medical examination. An ergonomic design and motion-sensing control allows exceptional comfort for the patient, while being visually pleasing in a high-quality medical environment.

 Specifications

 POWER SOURCE 220V AC, 50/60HZ

POWER CONSUMPTION 400W

ROTATION 360°

UP-DOWN STROKE 300mm ± 10%, Lifting mechanism (motor support)

RANGE OFBACK- 0-90°

 REST MOVEMENT Electronic Linear Actuator

 HEADREST Up/Down by manual

DIMENSION W 653 x D 881 x H 1278

WEIGHT Approx. 120kg

 ARM-REST 0~ 90°by manual REMOTE CONTROL Hand type, Up / Down / Front / Rear / Memory x 2

MEMORY Sit position memory x 4

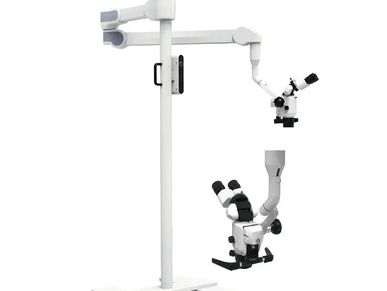

 Medical Microscope, with German 6 joints Arm System, and a degree-controlled ocular, which enables a microscope to move freely and help observe the affected area easily. With an optional digital camera or LCD monitor, one can save high-resolution images of an affected area, which is effective for otolaryngologists, dentists and more.

Specifications

BINOCULAR DISTANCE 55-75 (mm)

VARIFOCAL W.D. 175-420 - (mm), exduding Monitorand Monitorarm

LIGHT SOURCEE LED Lamp Intensity > 30,000 Lux

COLOR TEMPERATURE 5700K

FEATURE Foldable head.

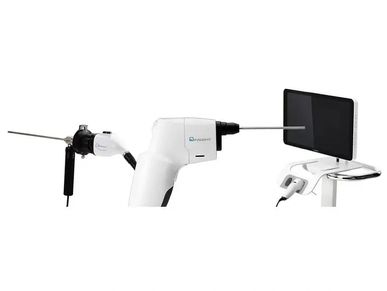

 Dual camera System can be used for a variety of different medical purposes. Space saving design cart is easy to move with wheel.

 Features

Improved clarity and brightness • High Noise immunity

Adjustable Focus & Mode (Capture, Environment)

 Compatible with a wide range of endoscopes

 Various additional video output • User friendly design

 Well-Designed Cart for convenient use

 A light engine made of optical fiber that illuminates an affected area with a high output, cool white LED source by connecting the source to a rigid endoscope. It has a user-friendly operation, simple design, and is compatible with optical fiber.

Specifications

POWER SOURCE 100-240V AC,50/60Hz

POWER CONSUMPTION 30W

 LIGHT INTENSITY Adjustable

OPTICAL FIBER MOUNT Exchangeable

DIMENSION W 220x D 164x H 111

 WEIGHT Approx. 5kg

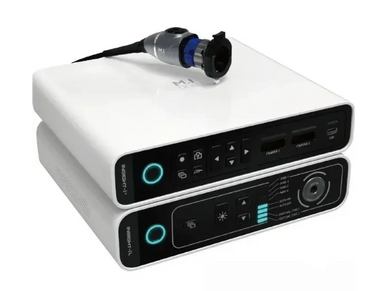

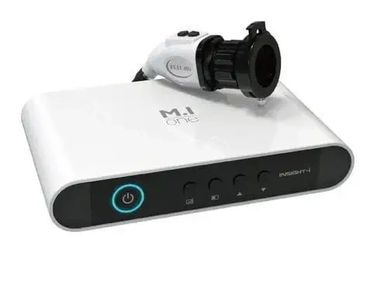

  With all in one system with Full-HD camera, a medical light source and endoscope will allow you to enhance the accuracy of endoscopic diagnosis. In addition. Ergonomic design is perfectly optimized for various medical environments.

Specifications

LUMINANCE 30,000 Lux

COLOR TEMPERATURE 5000 K

 ENDOSCOPE 2.70,0°, 100mm

POWER SUPPLY 100-220VAC 50/60HZ 49W02V DC, 5A)
